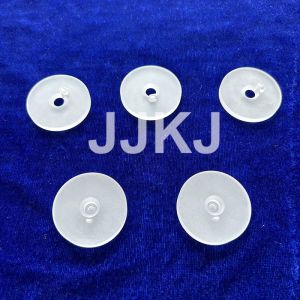

Unpolished Optical Sapphire crystal The Ultimate Solution for Optical Performance
Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.
Synthetic sapphire common application facets are A-Plane,C-Plane,
and R-Plane. Due to the wide optical penetration band of sapphire,
it has good light transmission from near ultraviolet (190nm) to
mid-infrared. Therefore, it is widely used in optical components,
infrared devices, high-intensity laser lens materials.
Sapphire also has the characteristics of high sound velocity, high
temperature resistance, corrosion resistance, high hardness, high
light transmittance, high melting point (2045℃), etc., so it is
often used as a material for photoelectric components.
Properties of Single Crystal Sapphire:
| Chemical formula | Al₂O₃ |
| Purity | 99.999% |
| Crystal structure | Hexagonal |
| Density | 3.98g/cm³ |
| Hardness Mohs | 9 |
| Fusion point | 2045℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | 5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Refractive index | no=1.768 ne=1.760 |
| dn/dt | 13×10-6/K(@633nm) |
| Transmission | T≈80%(0.3-5μm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
Sapphire Components
Sapphire's range of superior qualities make it ideal for optical and non-optical components. From the forward-facing optics of imaging systems to the thermal insulators in plasma systems, Sapphire's performance at extreme physical conditions often make it the preferred choice for the following:
Sapphire Lightguides
Sapphire offers higher working temperatures in applications such as temperature thermometry and IPL systems, with a broad transmission.
Sapphire Lenses
High optical quality Sapphire is used for lenses in systems that require durability and ruggedness where standard materials suffer from grit, impact and temperature damage. Sapphire lenses also offer high performance in laser devices, offering high thermal conductivity.
The broad transmission of Sapphire, across visible and NIR spectrums, make it ideal for FLIR imaging systems in hazardous environments, or where the reduced thickness of Sapphire lenses lead to reduced system footprint.
SapphireTubes
Sapphire tubes, made using the Stepanov growth method, replace glass and quartz tubes in high temperature and pressure systems such as plasma applications and insulators.
Sapphire Pins and Rods
As well as the optical proporties offered by Sapphire rods for fibre optcal and light-guide applications, the physical strength and inert nature of Sapphire make it ideal for engineering and structural uses.
|
|
